Broken Tap Remover
  • LS-100

『LS-100 Broken Tap Remover』

Expert In Solving Remove Taps, Portable, High-Efficiency, High-Speed, and Low-Cost.
Remove taps of various diameters that are broken in the work piece,drill bit, screw.

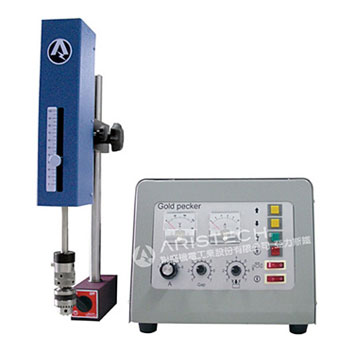

LS-100 sheet electrode holder：



LS-100 Client:



FEATURES & FUNCTION：

• Utilizing Spark Erosion method to remove Broken parts of Cutting tools Or Screws, No damage to Work piece, Due to cutting force generated.
• It is of Portable design and Its Magnetic base, Allows to be easily clamped on Top of Work piece for Machining.
• It is a Self-Contained unit, Complete with Dielectric Pump and Central cooling for Electrode Holder.
• The work head is Mounted on a +/- 60 Degree angle Slide plate.
• With simple Easy-to-understand Operating panel on Controller.
• With Automatic cutting depth control. Maximum Z-axis depth setting : 100mm. And Z-axis up / down Max. Travel : 300mm.


SPECIFICATION：

MODEL   LS-100
Electrode Diameter Range mm ø1.5~ø6.0
Machine Unit Net Weight kgs 6
Machine Dimensions (W x D x H) mm 240 x 60 x 410
Generator Unit Net weight kgs 30
Generator Dimensions (W x D x H) mm 310 x 260 x 200
Generator Power Input   220Volt. 1-Phase,50/60Hz
Maximum Current Output Amp 10A
Total AC Power InputTotal AC Power Input kva 1.2KVA
Dielectric Fluid   Clean Water
Electrode Material   Brass Bar & sheet
Packing Dimension (Carton Packing) mm 470L x 470W x 400H
Total Weight (Carton Packing) kgs 40
Wooden Crate Packing Dimension mm 530L x 530W x 520H
Wooden Crate Packing Weight kgs 50
 *Specifications are subject to change without notice.

TYPICAL WORK TIMES：

TAPER

DEPTH

CLECTROD

TIME

M6

10 mm

ø3

7 min

M8

10 mm

ø4

9 min

M10

10 mm

ø5

13 min

M12

10 mm

ø6

16 min

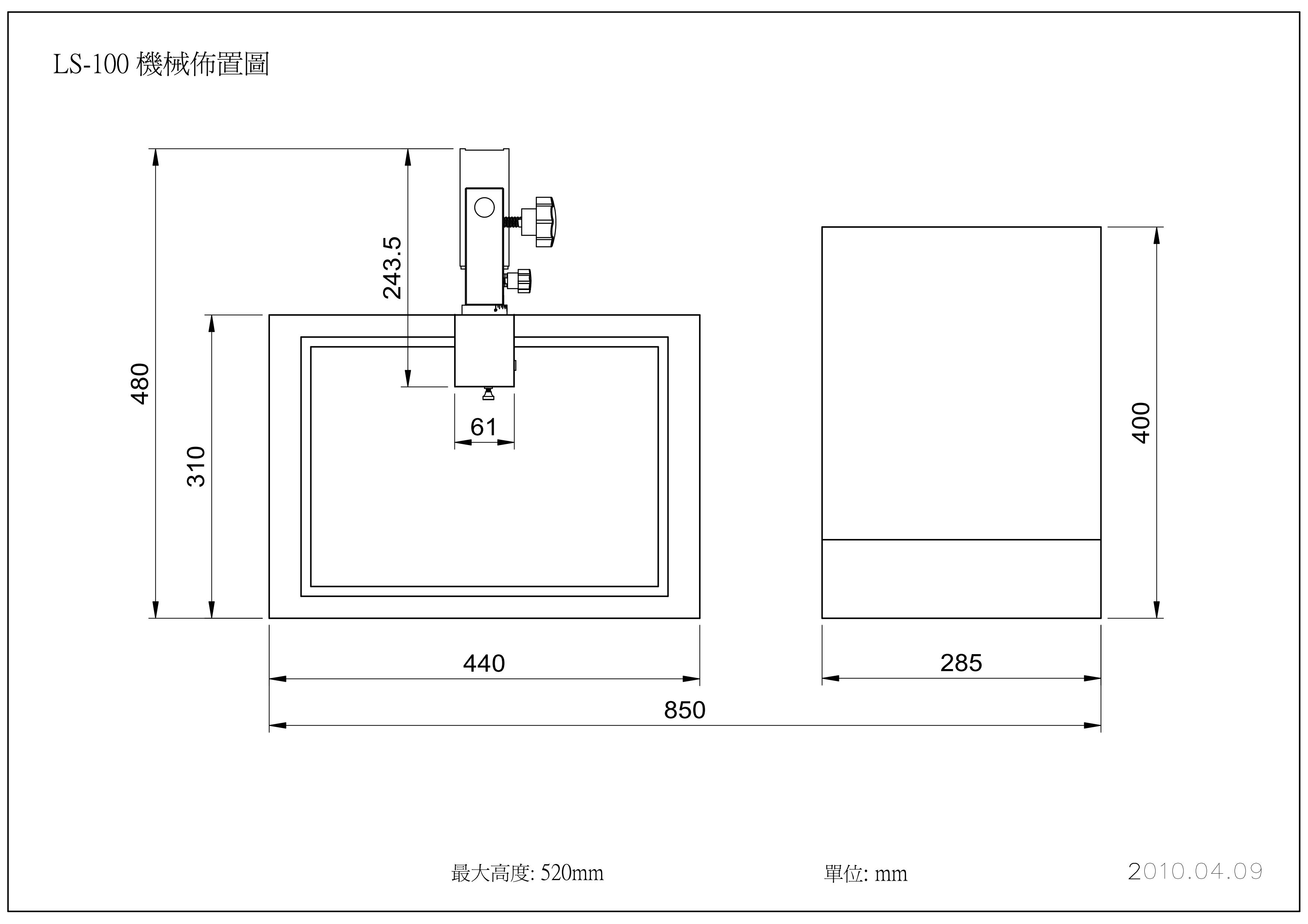

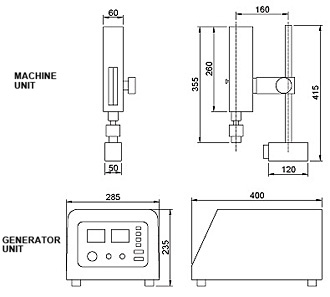

OVERALL DIMENSION：

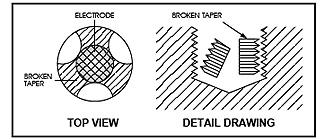

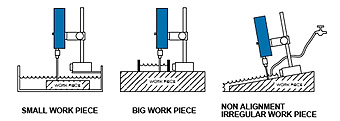

CUTTING METHOD：

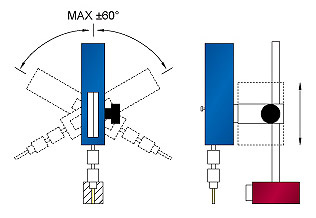

SWIVEL WORK HEAD：


1. MACHINE UNIT With Magnetic Base.
2. GERNERATOR UNIT.
3. SMALL PUMP UNIT FOR Dielectric Fluid.
4. ELECTRODE CHUCK
5. BRASS ELECTRODE.(SIZE AS BELOW)
  ø2.0mm DIA. x 2 Pieces
  ø3.0mm DIA. x 2 Pieces
  ø4.0mm DIA. x 1 Pieces
  ø5.0mm DIA. x 1 Pieces
  ø6.0mm DIA. x 1 Pieces
  BRASS SHEET & FIXED HOLDER. x 1 Set.
